Computer HP Pavilion g7 Thermal shutdown occurred

HP Pavilion g7 Thermal shutdown occurred, System temperature (90D)


  • Reboot unexpectedly up to twice a day in the middle of doing nothing or work
  • Case get's very very hot (you can burn your skin)
  • Overheating CPU, computer shuts down automatically

Error message:

"Thermal shutdown occurred.

The system BIOS has detected that your notebook PC was put into hibernation or shutdown to avoid overheating. The system is now
operating normally.

Overheating may occur if the cooling vents are blocked or the operating temperature exceeds the specifications. The notebook PC
should return to normal operation once the situation is resolved.

System temperature (90D).

ENTER - Continue Startup

For more information, please visit:"

[cml_media_alt id='3377']IMG_9205[/cml_media_alt]



Source: Garrett Spitzmueller, YouTube.

This guide is good, BUT:

  • Earth yourself.
  • Use a earth mat for working.
  • Never ever use a battery driven screwdriver like it's shown in his video, too much force. This can damage everything.
  • Mark the screws which are important with a little line, see details below. So you always use the same amount of force putting it back together.

WARNING: Opening (moving back) the monitor can basely break some plastic case peaces, see details below.

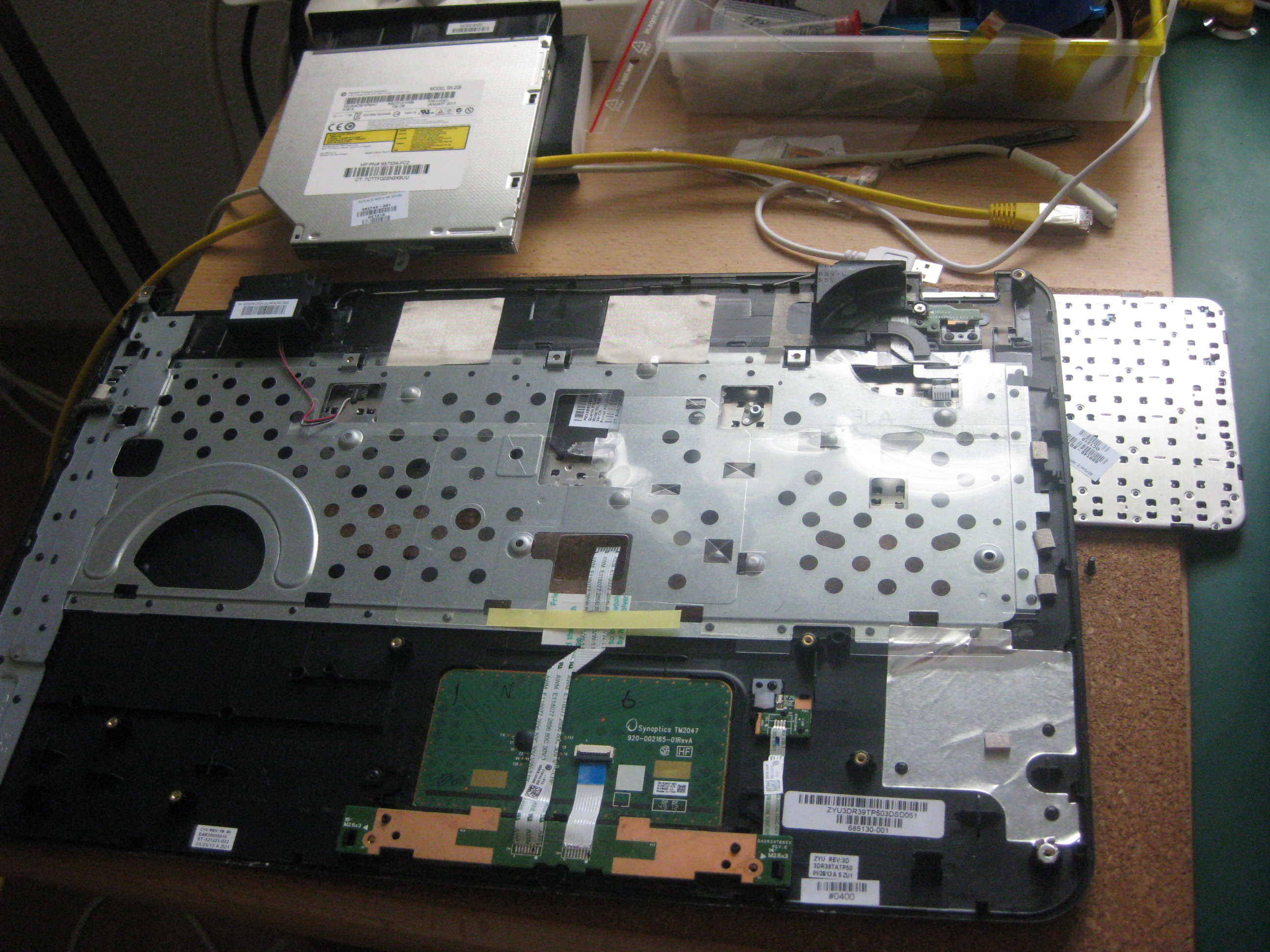

[cml_media_alt id='3378']IMG_9165[/cml_media_alt] [cml_media_alt id='3379']IMG_9166[/cml_media_alt] [cml_media_alt id='3380']IMG_9167[/cml_media_alt] [cml_media_alt id='3381']IMG_9168[/cml_media_alt] [cml_media_alt id='3382']IMG_9169[/cml_media_alt] [cml_media_alt id='3383']IMG_9170[/cml_media_alt] [cml_media_alt id='3384']IMG_9171[/cml_media_alt] [cml_media_alt id='3385']IMG_9172[/cml_media_alt]



TIP: Just mark the position before you unscrew these screws! So you make sure you do not overdrive the screws.

[cml_media_alt id='3386']IMG_9173[/cml_media_alt]


Really? There is a little screw where you can unscrew with luck...

[cml_media_alt id='3388']IMG_9174[/cml_media_alt] [cml_media_alt id='3389']IMG_9175[/cml_media_alt]


There is another one... so this is HP design fault. You can not remove the fan without removing the whole CPU cooling assembly... by HP.... 😉

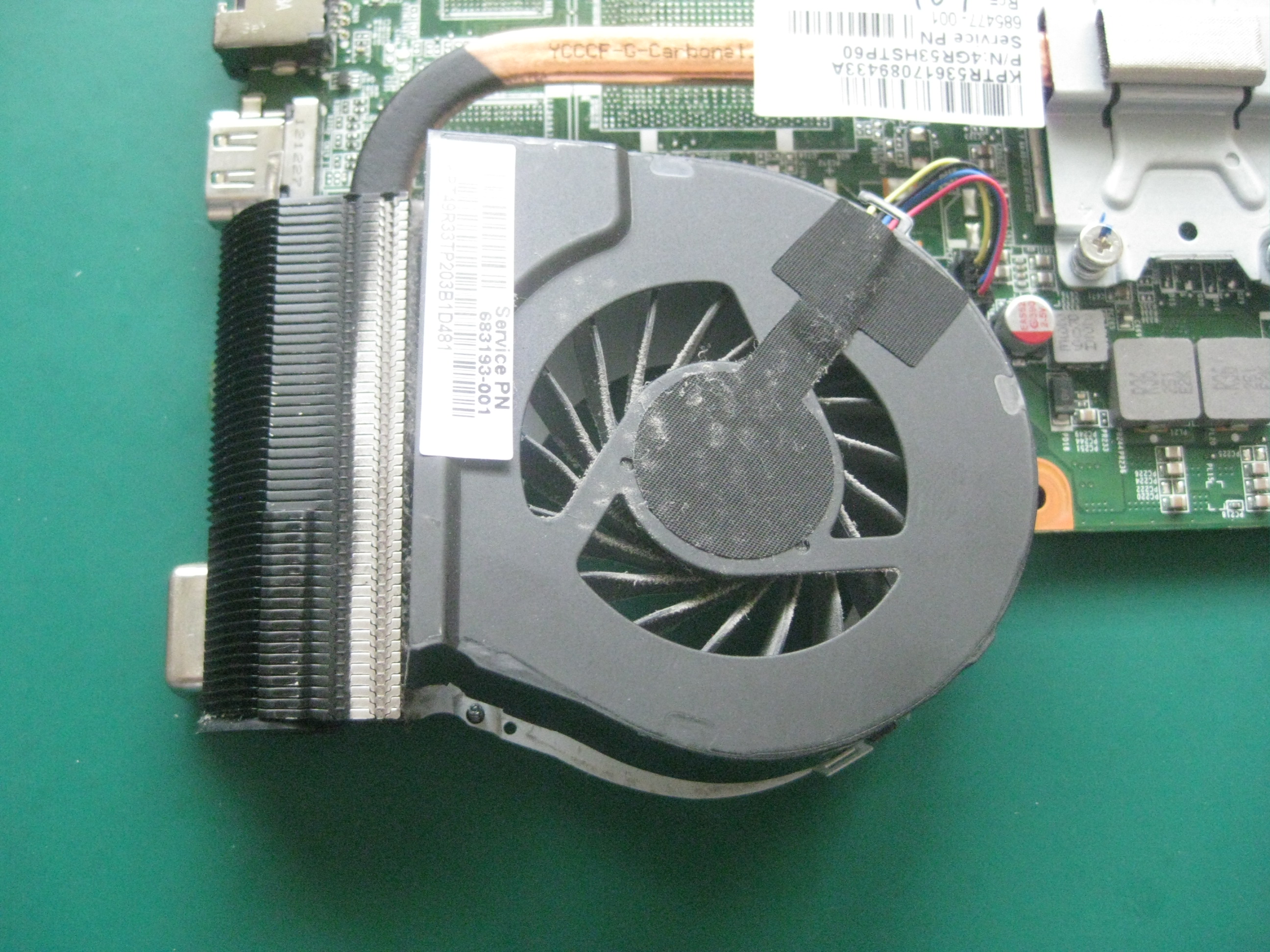

[cml_media_alt id='3390']IMG_9176[/cml_media_alt]

[cml_media_alt id='3391']IMG_9177[/cml_media_alt]

[cml_media_alt id='3392']IMG_9178[/cml_media_alt]

[cml_media_alt id='3393']IMG_9179[/cml_media_alt]

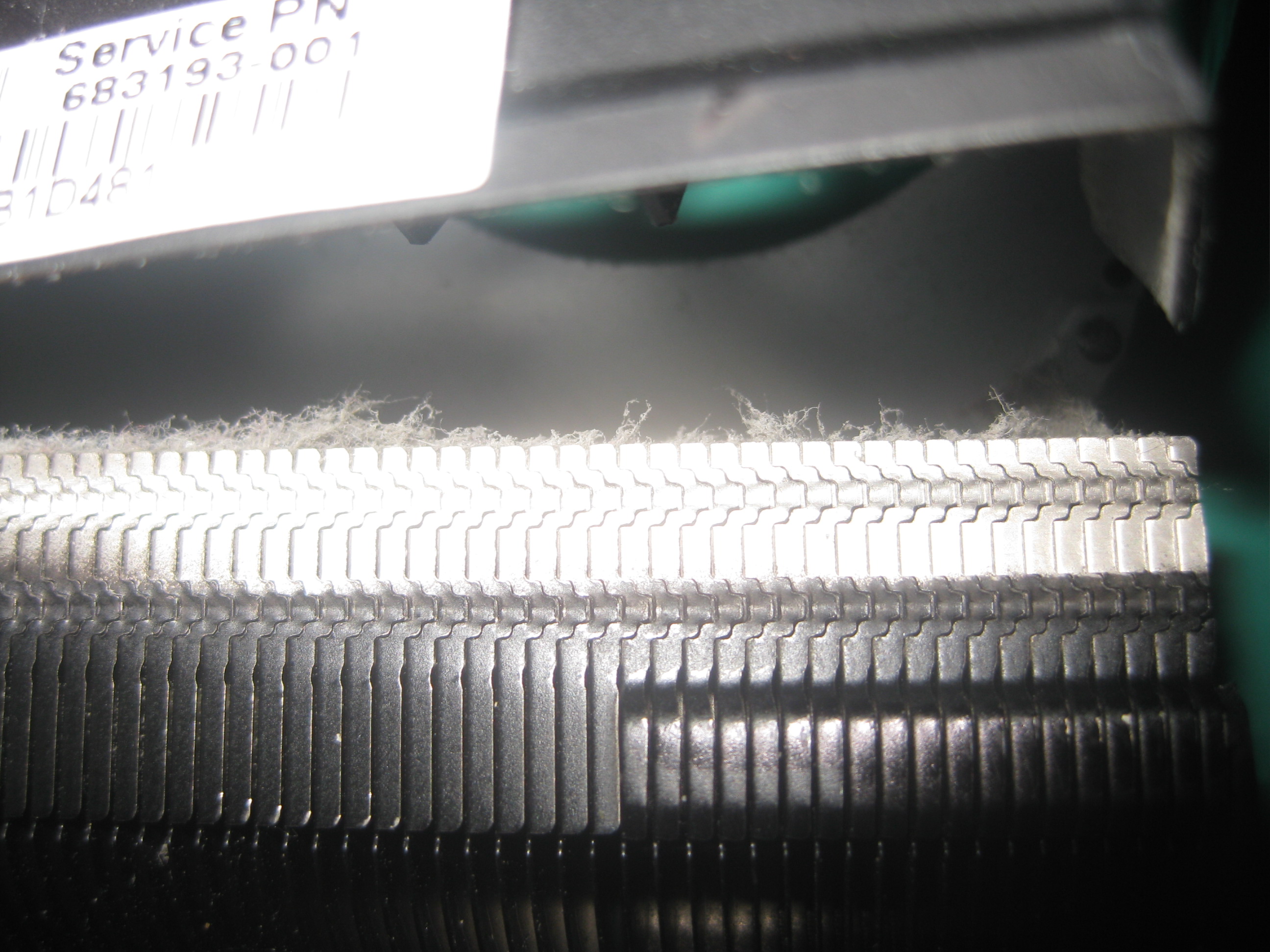

[cml_media_alt id='3394']IMG_9180[/cml_media_alt]


[cml_media_alt id='3395']IMG_9181[/cml_media_alt]


[cml_media_alt id='3396']IMG_9182[/cml_media_alt]

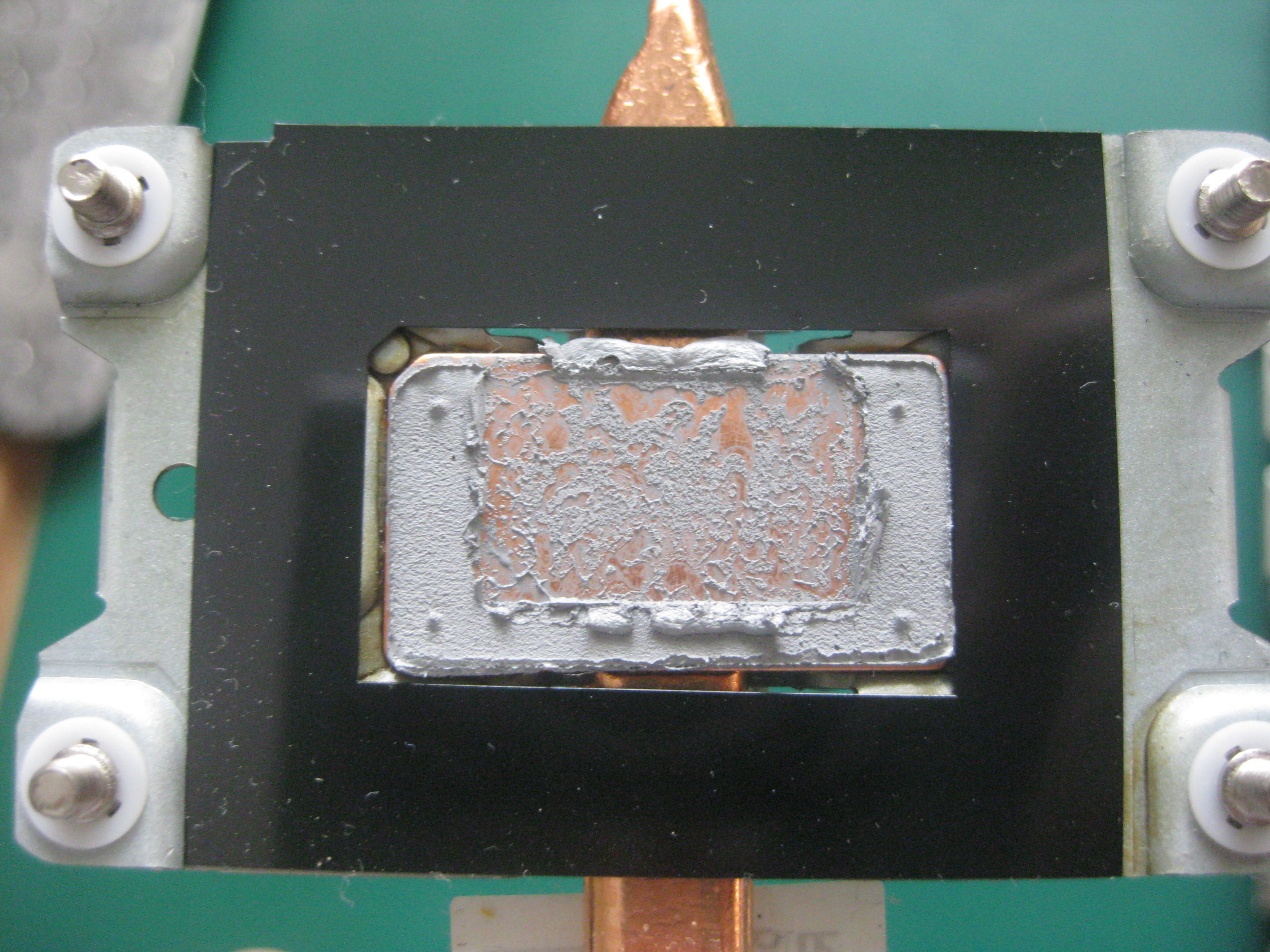

[cml_media_alt id='3397']IMG_9183[/cml_media_alt]


[cml_media_alt id='3398']IMG_9184[/cml_media_alt]


Reapply some oil.

[cml_media_alt id='3399']IMG_9185[/cml_media_alt]


[cml_media_alt id='3401']IMG_9187[/cml_media_alt] [cml_media_alt id='3402']IMG_9188[/cml_media_alt] [cml_media_alt id='3403']IMG_9189[/cml_media_alt] [cml_media_alt id='3404']IMG_9190[/cml_media_alt] [cml_media_alt id='3405']IMG_9191[/cml_media_alt] [cml_media_alt id='3406']IMG_9192[/cml_media_alt] [cml_media_alt id='3407']IMG_9193[/cml_media_alt] [cml_media_alt id='3408']IMG_9194[/cml_media_alt]


Reapplied heating compound now showed here.


[cml_media_alt id='3409']IMG_9195[/cml_media_alt]


The BAD screws, from HP design, holding the fan ... useless...

[cml_media_alt id='3410']IMG_9196[/cml_media_alt]

HP design:

[cml_media_alt id='3411']IMG_9197[/cml_media_alt]

[cml_media_alt id='3412']IMG_9198[/cml_media_alt]

[cml_media_alt id='3413']IMG_9199[/cml_media_alt]


Crack in the case, because of moving the monitor back... try to prevent this.


[cml_media_alt id='3414']IMG_9200[/cml_media_alt]

[cml_media_alt id='3415']IMG_9201[/cml_media_alt]

[cml_media_alt id='3416']IMG_9202[/cml_media_alt]

[cml_media_alt id='3417']IMG_9203[/cml_media_alt]

[cml_media_alt id='3418']IMG_9204[/cml_media_alt]
