Brother DCP-135C, DCP-150c, DCP-130c

Brother DCP-135C, DCP-150c, DCP-130c

This is a very good printer. Be careful.

BTW: This printer has no printer cartridge chips. You will love it.

So you can assembly and use any cartridge you want.

Can remove the scanner cover if you need to. So then you have a flat surface where you can scan thins.

Printer Types

All more or less the same model:

  • MFC 235C
  • MFC 260C
  • MFC 240CN
  • MFC 440CN
  • MFC 660CN
  • MFC 665CW
  • DCP-130C
  • DCP 135C


Reset Counter

  • Press fast in sequence: Ok, Menu, Mono (B/W)
  • Now you are in MAINTENANCE Mode
  • Arrow-Keys: 8, OK
  • Arrow-Keys: 0 (Zero), OK
  • Arrow-Keys: until PURGE on screen
  • Arrow-Keys: 2, OK
  • Arrow-Keys: 7, OK
  • Arrow-Keys: 8, OK
  • Arrow-Keys: 3, OK
  • Display shows: PURGE:00000
  • Arrow-Keys: 9, OK
  • Arrow-Keys: 9, OK
  • Now your are back in NORMAL Mode.


How to Open the Printer

  • This printer is very modular, just a few parts for the case. Very nice.
  • Be careful. Everything can be done without much force.
  • Just a few crews and you are in.




Ink Cartridges

  • LC10
  • LC37
  • LC51
  • LC57
  • LC960
  • LC970, LC-970Y
  • LC1000


Cartridge: Pelikan

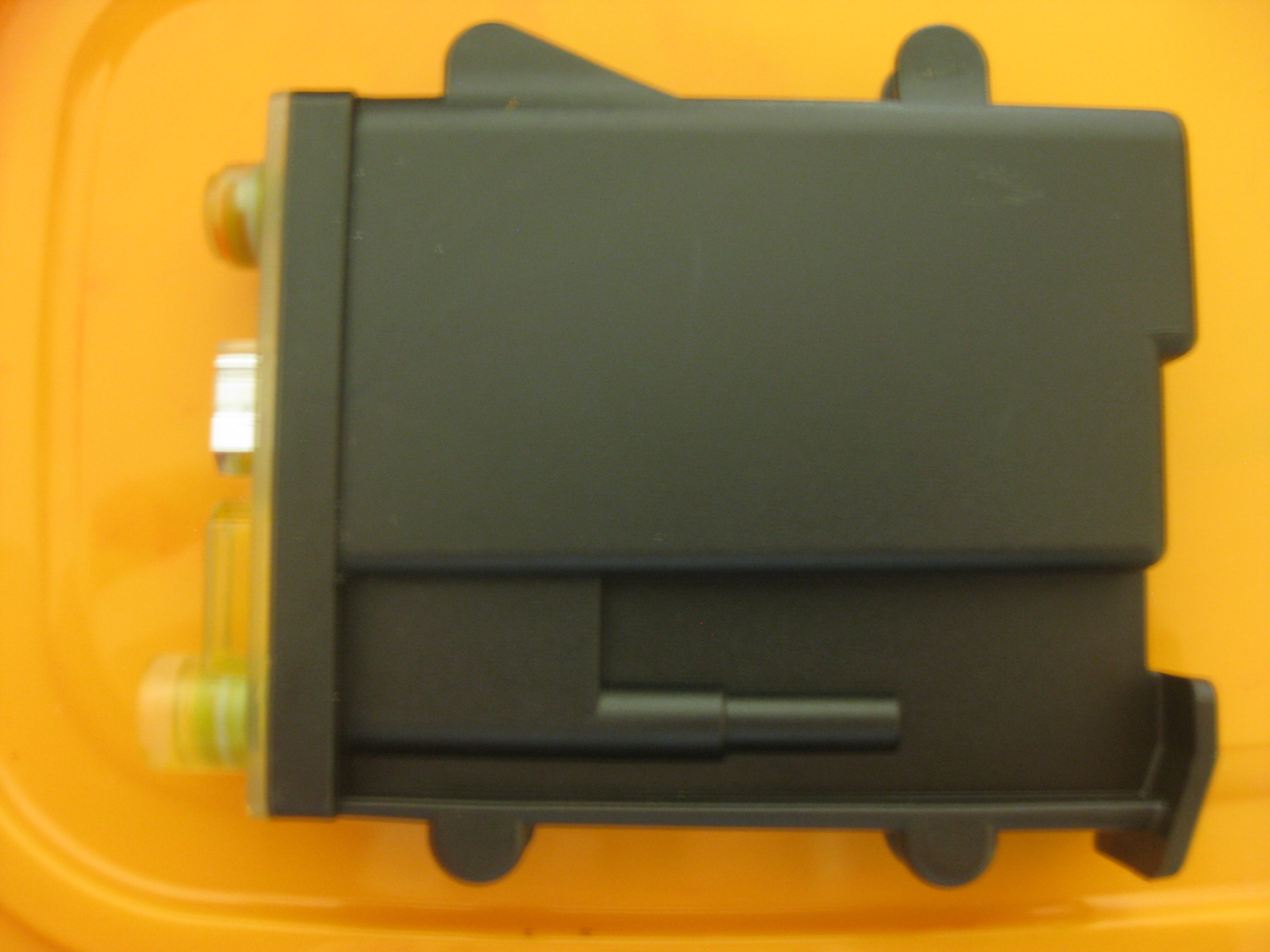

  • You can fill up these very easily. Just fill in the ink with a syringe.

[cml_media_alt id='5254']IMG_2693[/cml_media_alt]

[cml_media_alt id='5255']IMG_2696[/cml_media_alt]

[cml_media_alt id='5256']IMG_2697[/cml_media_alt]

[cml_media_alt id='5257']IMG_2699[/cml_media_alt]



Cartridge: Other

  • Most other type you can fill in with a vacuum. Just fill up your syringe half way. Then apply the ink, create a vacuum, the ink will be sucked in automatically.


Cleaning Ink Waste Tank

(There is an other ink waste thank on the left side, this is where your printer will "test-print" before printing.)

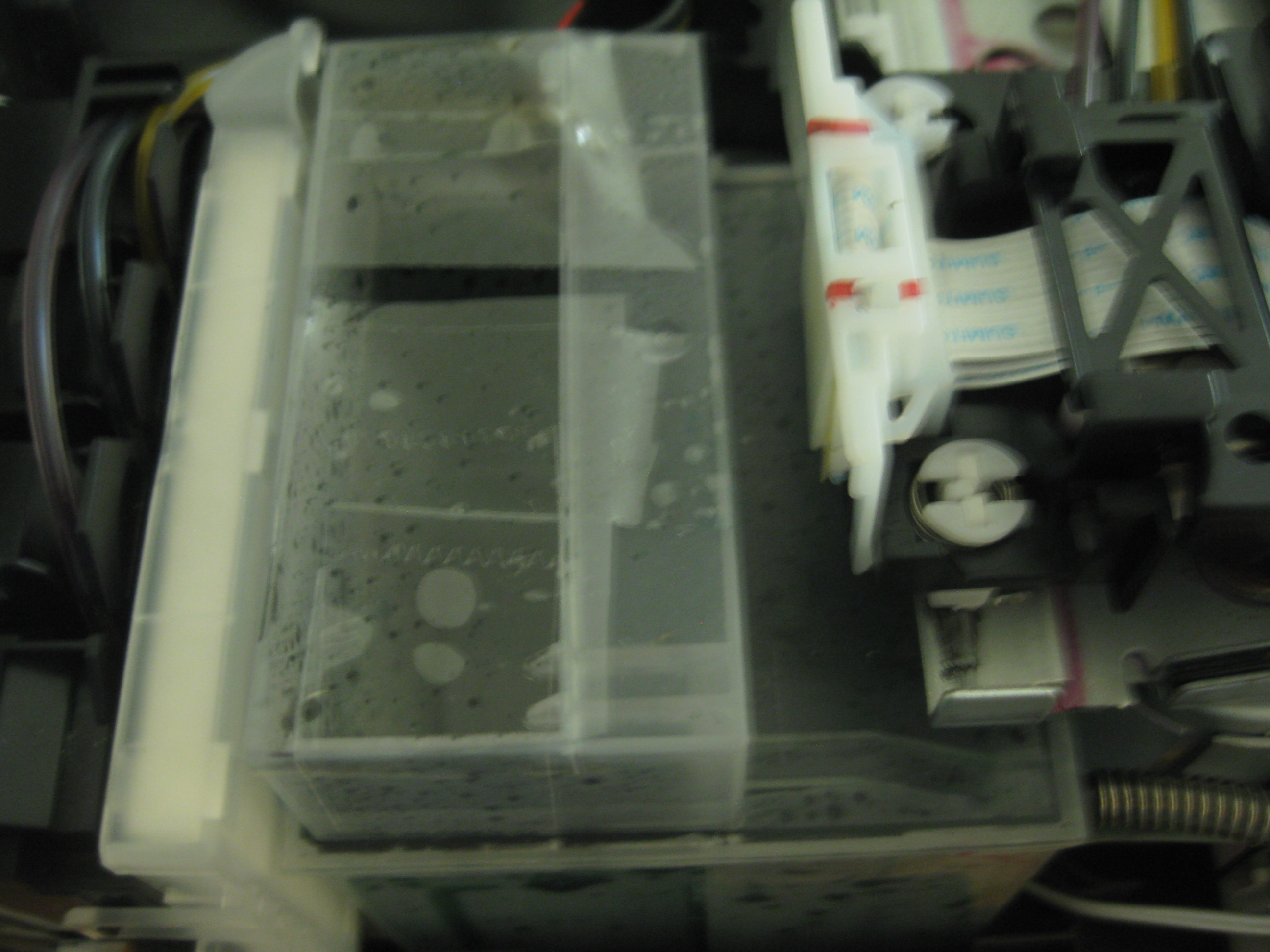

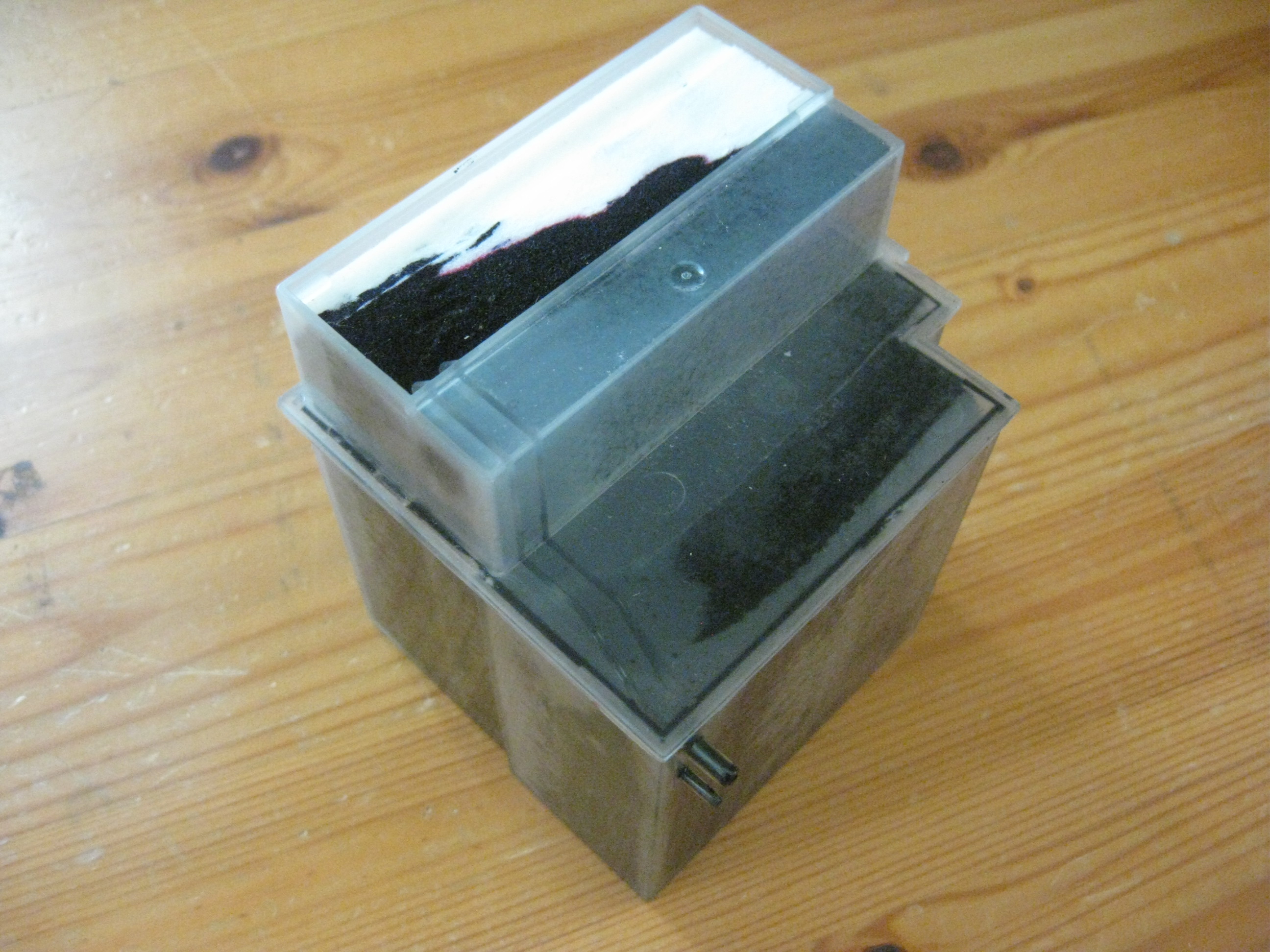

  • This is the cleaning waste tank
  • The upper pipe is the air-intake.
  • The lower pipe is the waste ink output. This is where the waste ink goes in to the waste tank.
  • You can remove the sponges. But then make sure the waste ink does not spill all over the place. Also make sure that you do not move your printer up-side-down, etc.
  • Secure the top with some tape, let a small gap for the air intake.

[cml_media_alt id='5248']IMG_2676[/cml_media_alt]

[cml_media_alt id='5249']IMG_2677[/cml_media_alt]


[cml_media_alt id='5250']IMG_2678[/cml_media_alt]


[cml_media_alt id='5251']IMG_2679[/cml_media_alt]

[cml_media_alt id='5252']IMG_2700[/cml_media_alt]


The Cleaning System

[cml_media_alt id='5277']IMG_2682[/cml_media_alt]



Magenta does not print any more

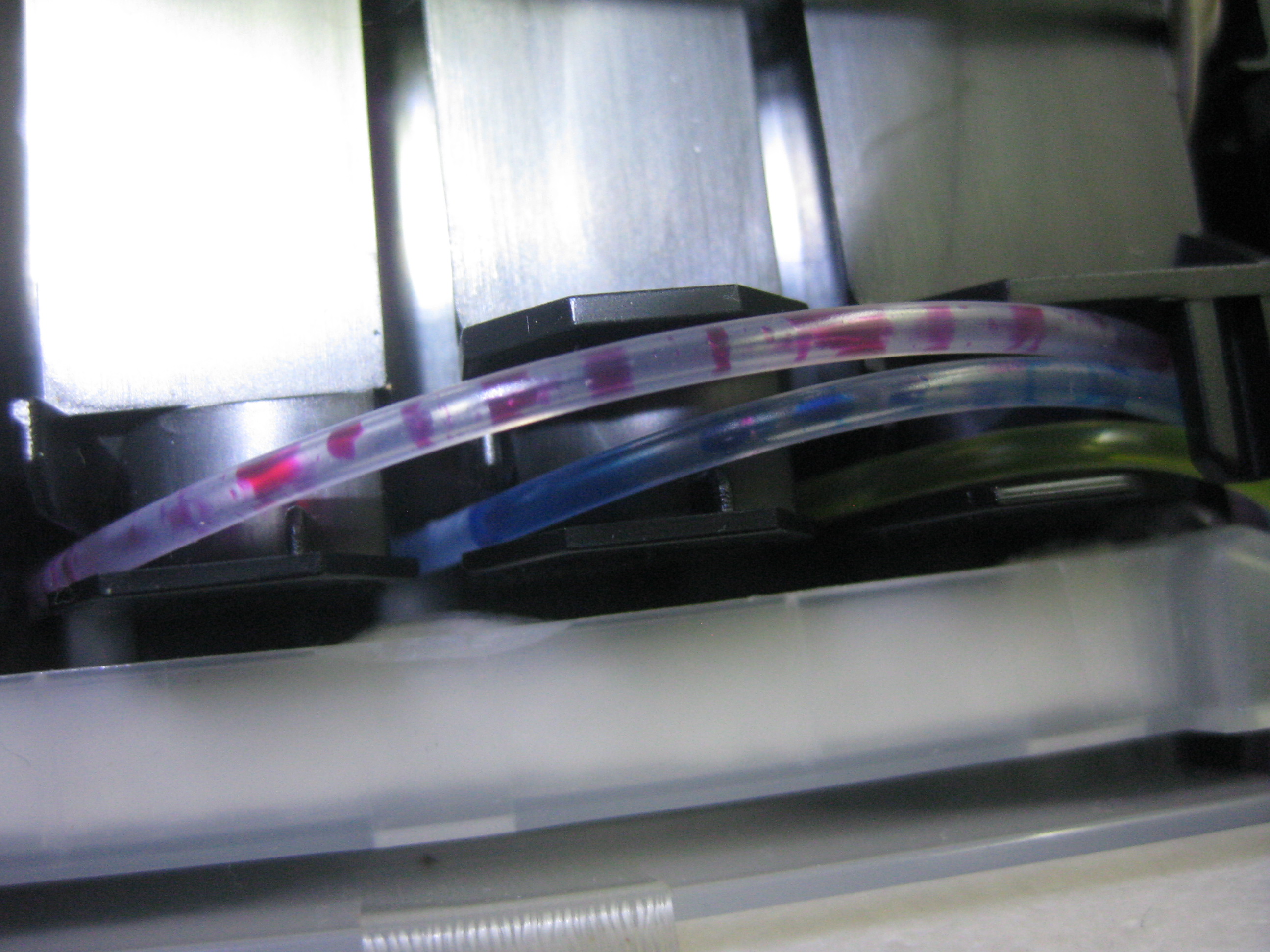

  • If air get's in the pipes: This is not a problem with this printer. After 2 or 3 or 4 cleaning cycles the air get's pushed out.

There is a problem with magenta. This is because someone pushed in very hard magenta ink, and it leaked.

[cml_media_alt id='5262']IMG_2708[/cml_media_alt]


You can check which color is which and which does not work like so: Just hold a towel below the print head.

Here you can see that it is magenta which does not print.

[cml_media_alt id='5279']IMG_2713[/cml_media_alt]


How to Disassemble the Print-Head

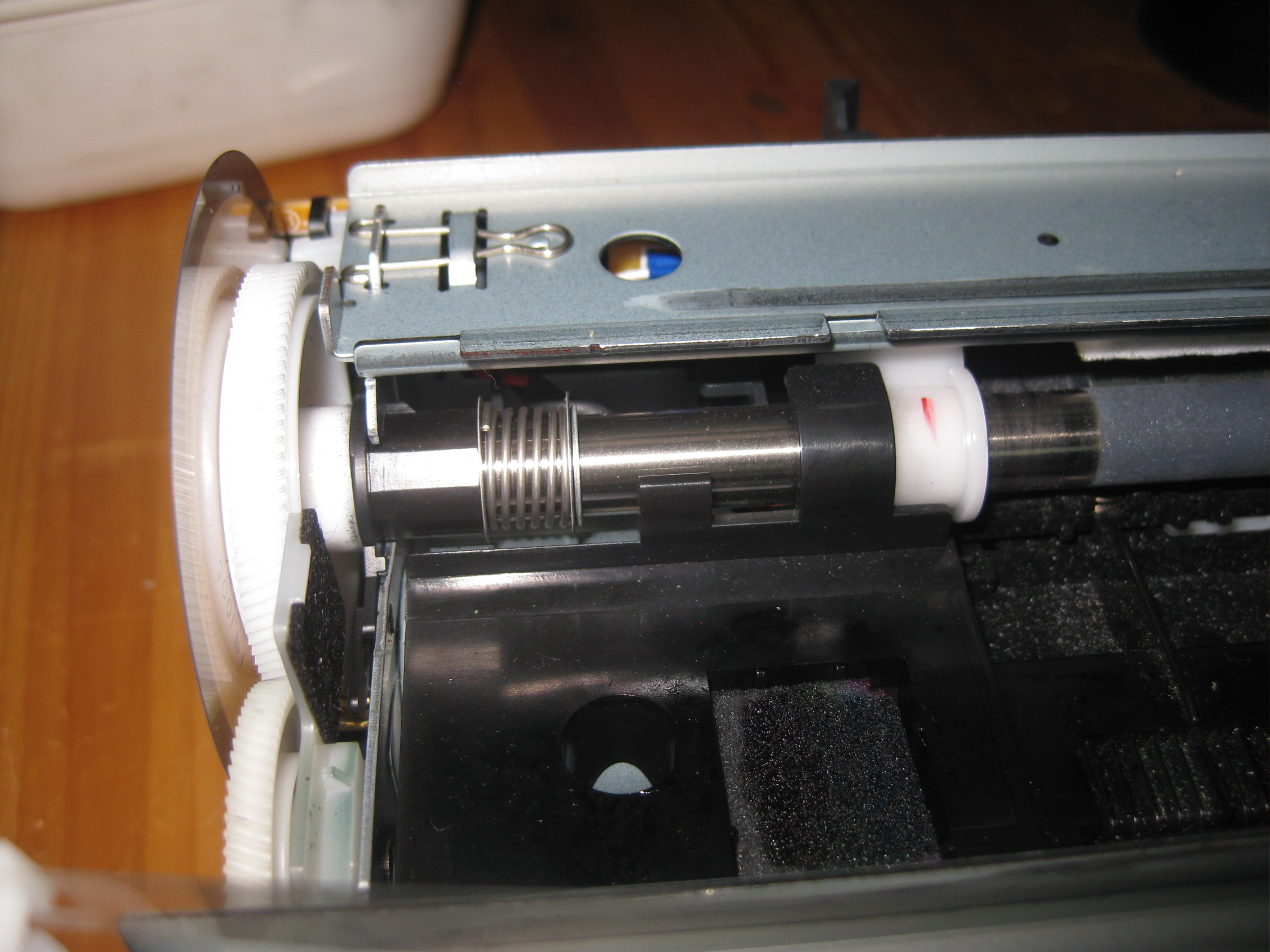

Move the big wheel on the left about 1 cm towards you, as if the printer will turn to feed the paper in. This will release the print-head assembly.

After that you can move the print-head assembly freely without much force.

[cml_media_alt id='5263']IMG_2656[/cml_media_alt]


Move the print-head assembly towards the big wheel. There you can release the head. (little cut outs, slots)

Lose the belly.

Remove the cover.

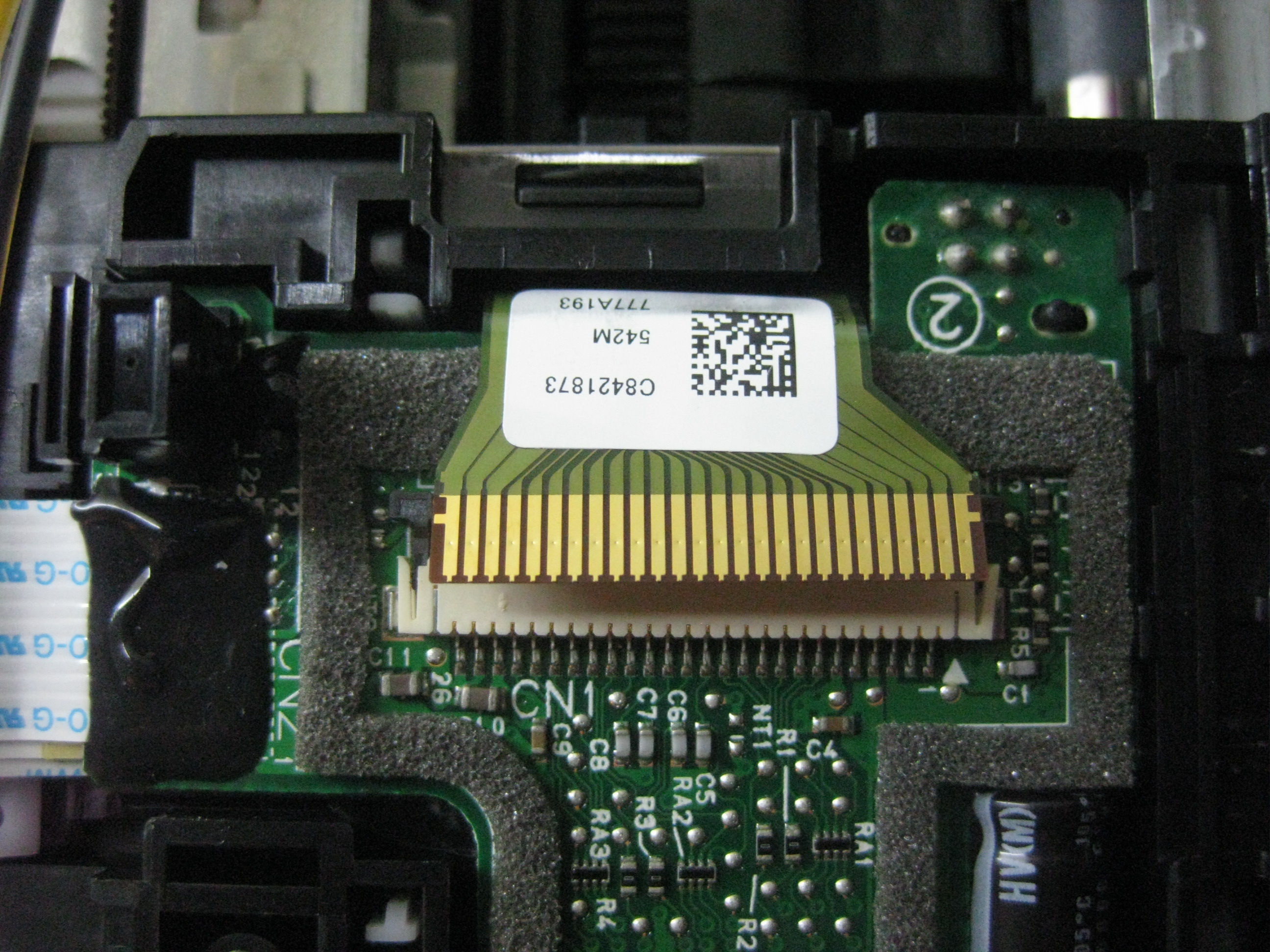

Remove the flex cable.

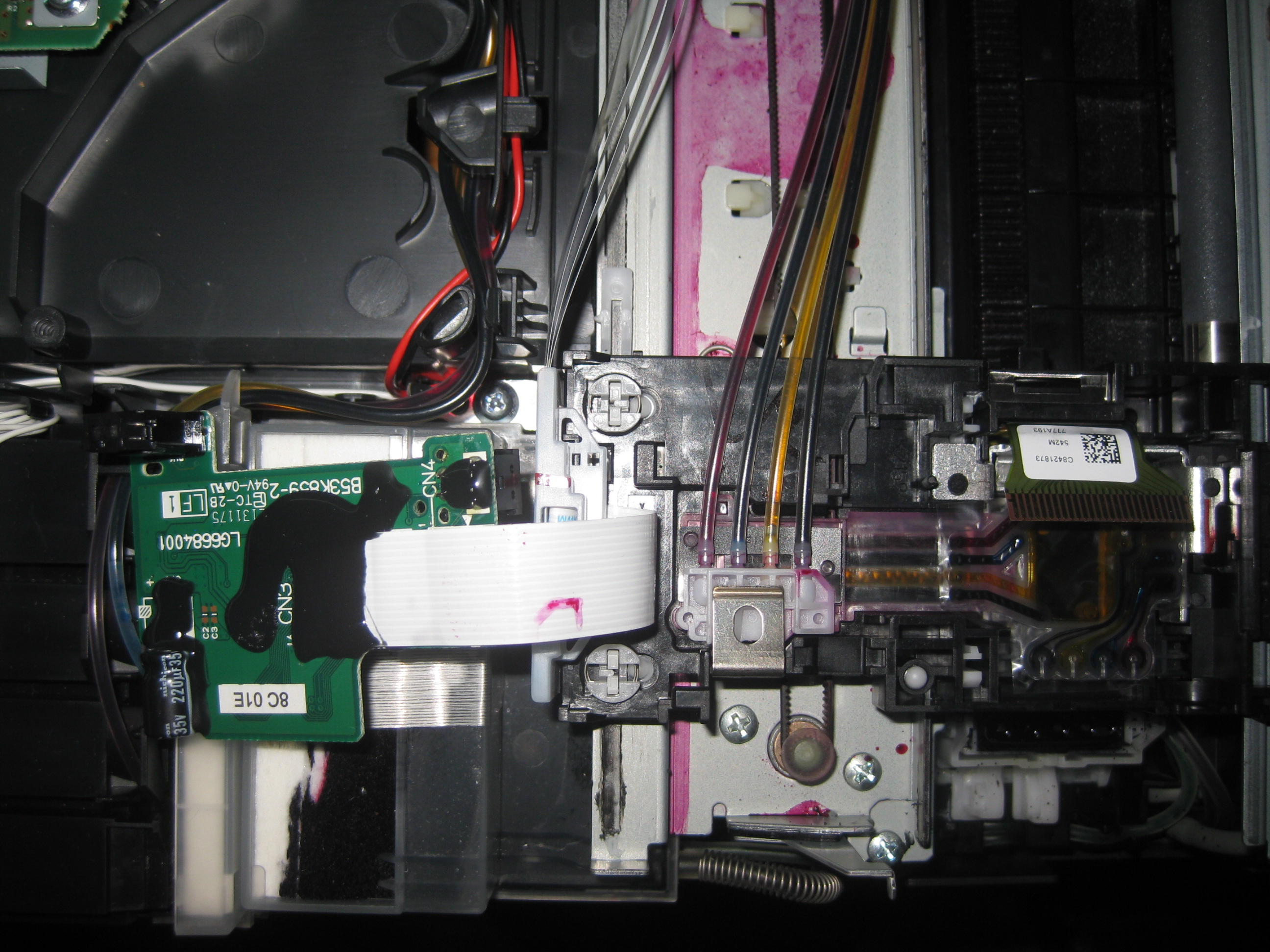

[cml_media_alt id='5264']IMG_2657[/cml_media_alt]


[cml_media_alt id='5265']IMG_2660[/cml_media_alt]


[cml_media_alt id='5267']IMG_2661[/cml_media_alt]


[cml_media_alt id='5268']IMG_2662[/cml_media_alt]


[cml_media_alt id='5269']IMG_2664[/cml_media_alt]


[cml_media_alt id='5270']IMG_2665[/cml_media_alt]


[cml_media_alt id='5271']IMG_2666[/cml_media_alt]


[cml_media_alt id='5272']IMG_2667[/cml_media_alt]

[cml_media_alt id='5273']IMG_2668[/cml_media_alt]


[cml_media_alt id='5274']IMG_2669[/cml_media_alt]




Print-head close up.

Every Color as 89 dots.

Black (B)

Yellow (Y)

Cyan (C)

Magenta (M)


[cml_media_alt id='5245']IMG_2688[/cml_media_alt]

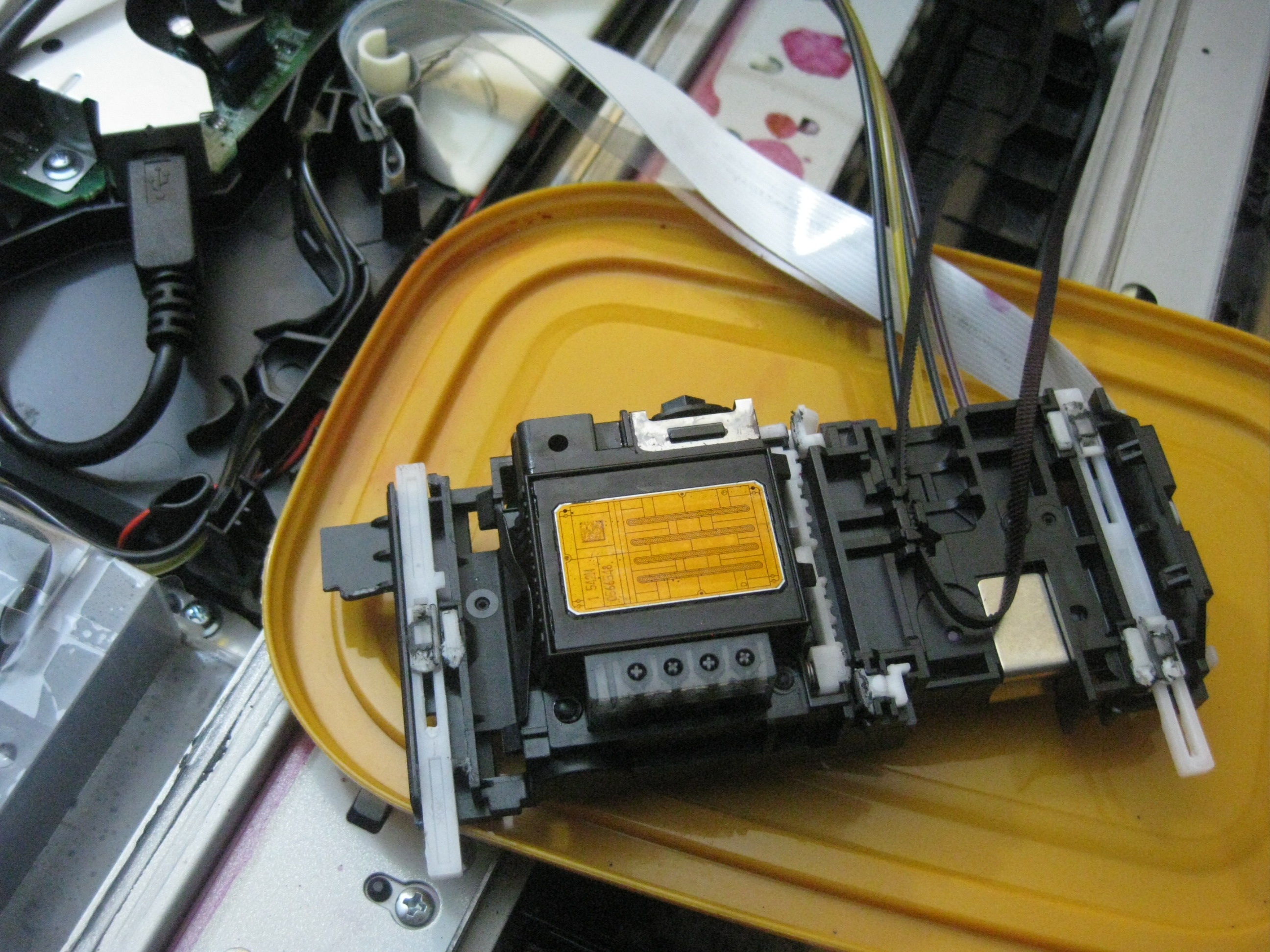

The print-head assembly.

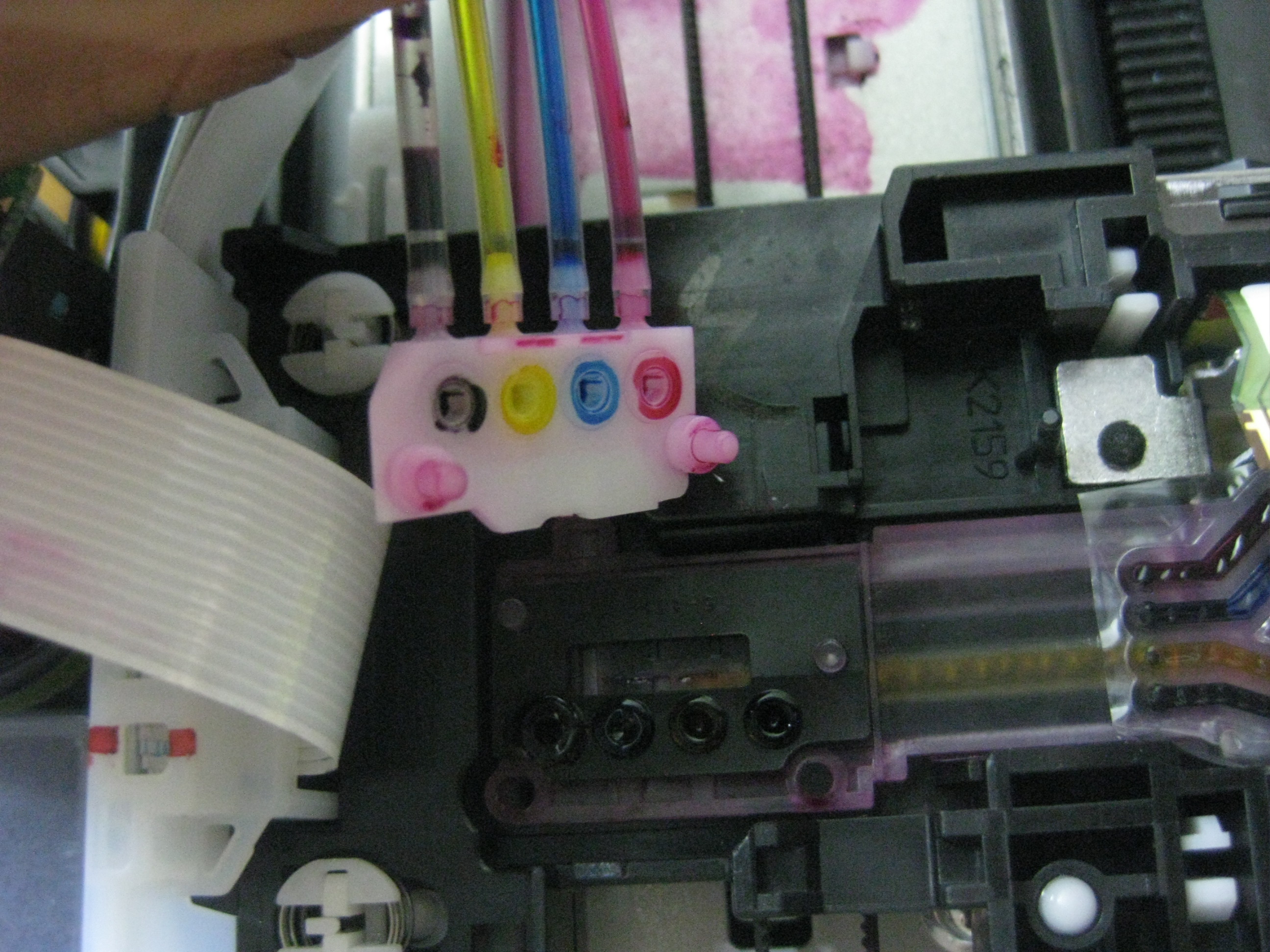

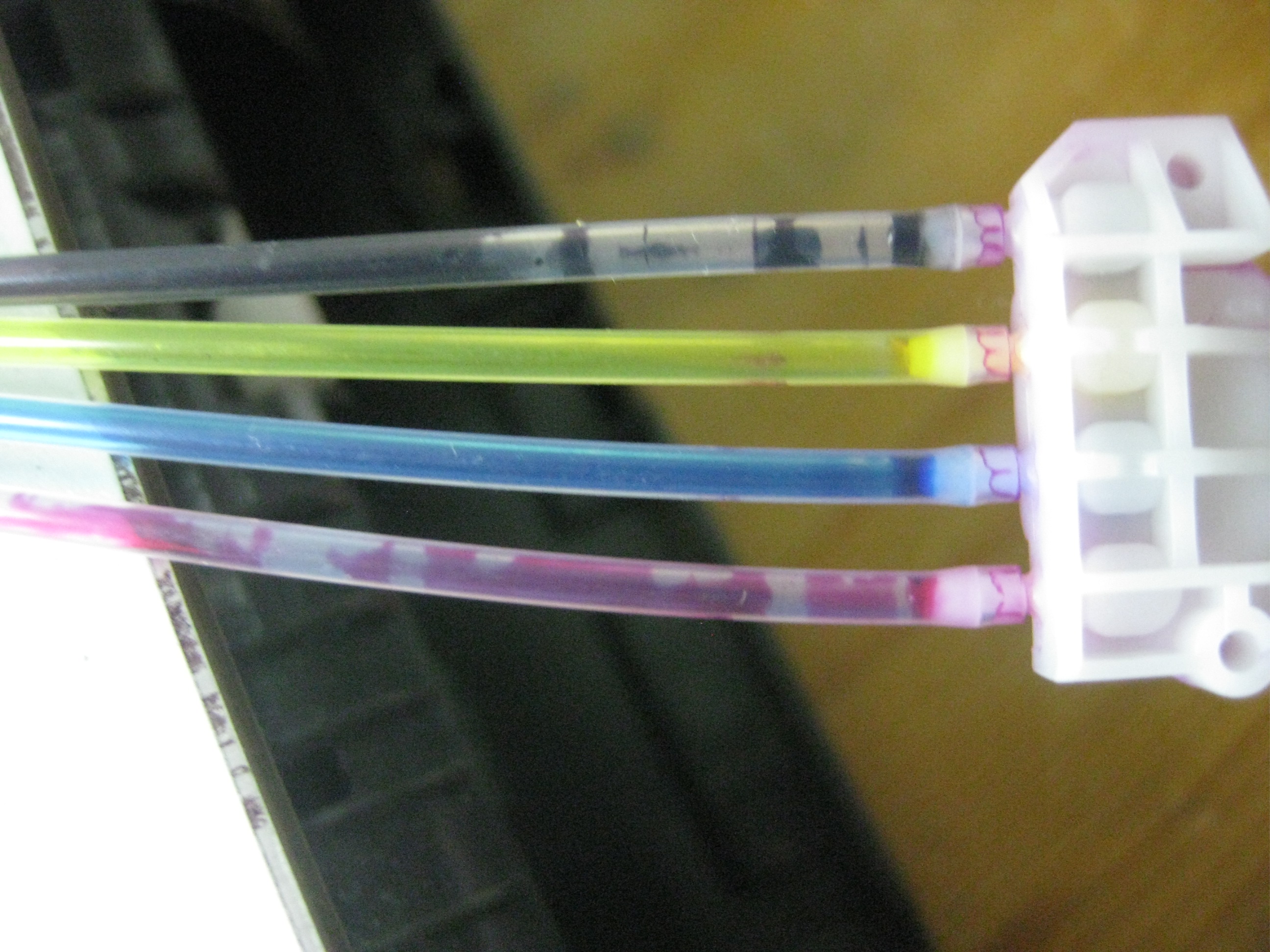

Ink pipes: BLACK, YELLOW, CYAN, MAGENTA (from left to right)

[cml_media_alt id='5246']IMG_2687[/cml_media_alt]

[cml_media_alt id='5247']IMG_2675[/cml_media_alt]


[cml_media_alt id='5278']IMG_2689[/cml_media_alt]



Error: Paper Jam

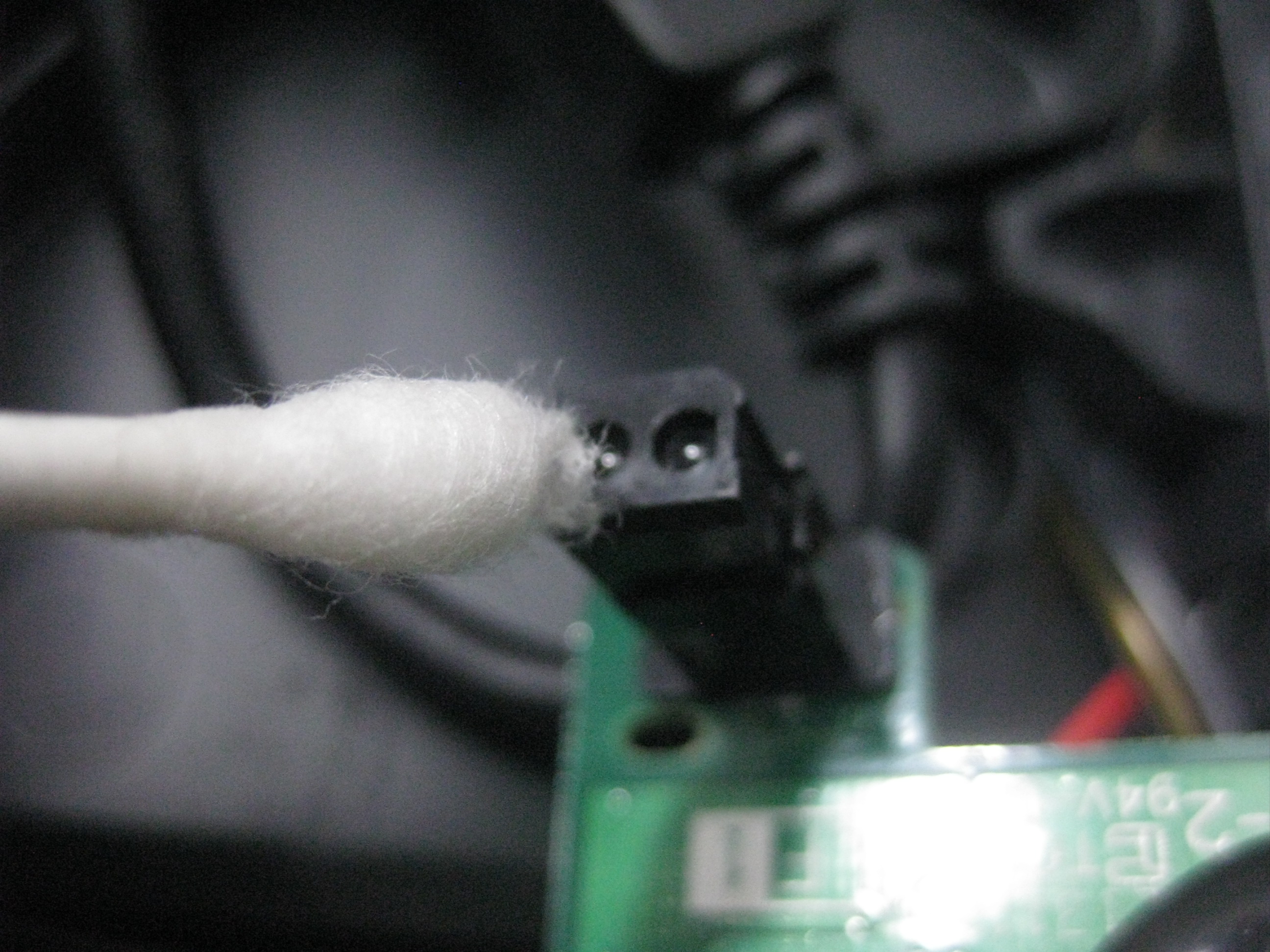

How to clean the Paper-Feed Sensor

[cml_media_alt id='5244']IMG_2721[/cml_media_alt]
