Universal Filament Spool Holder

Support for 16, 17 and 22 mm ball bearings

You can download this design at Thingiverse.com https://www.thingiverse.com/thing:173204

• This is my universal filament spool holder
• It will provide smooth feeding of your filament
• Self centers because of 3 wings and the convex shape (not 4)
• Note: This one was printed with PLA (Bio-Plastic), should work with ABS (LEGO Plastic) as well.

Compatible with K8200, 3drag and others

It should fit on any 3D-printer based on the 3drag like Velemann K8200 and many others. (SketchUp design included, feel free to extend it so that it fit your printer as well.)

• Vellemann K8200
• 3drag, and other based 3drag printers
• your own printer as well 😉

You can use two different very common ball bearing sizes (16, 17 and 22 mm diameter)

Instructions

• Just print two of them, then mount them on the spool axes with ball bearings attached to it.
• Place your filament spool between two universal filament spool holders like so: )> ]-[ <(
• The holder is very universal and can be used with many filament spools with different sizes and holes

Data

Version 2: Updated inner small hole for 17.0 mm support (in SketchUp CAD 17.5 mm) - NO support for 16 mm, see Version 1.

• center hole for axes: 8 mm diameter (in SketchUp CAD 8.5mm)
• hole for 17 mm diameter ball bearing holder (in SketchUp CAD 17.5mm)
• hole for 22 mm diameter ball bearing holder (in SketchUp CAD 22.5mm, because PLA hole shrinks, and/or STL tolerance of export)

Version 1: Support for 16 mm diameter ball bearings

• center hole for axes: 8 mm diameter (in SketchUp CAD 8.5mm)
• hole for 16 mm diameter ball bearing holder (in SketchUp CAD 16.5mm)
• hole for 22 mm diameter ball bearing holder (in SketchUp CAD 22.5mm, because PLA hole shrinks, and/or STL tolerance of export)

Source

• SketchUp source file included
• STL print ready file



Design

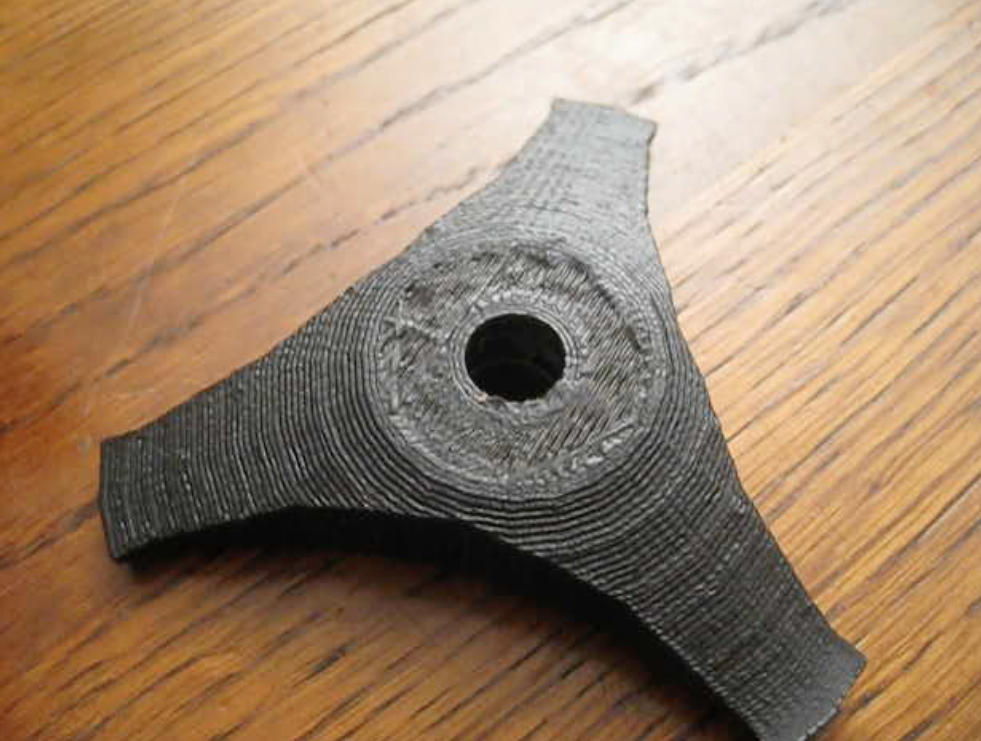

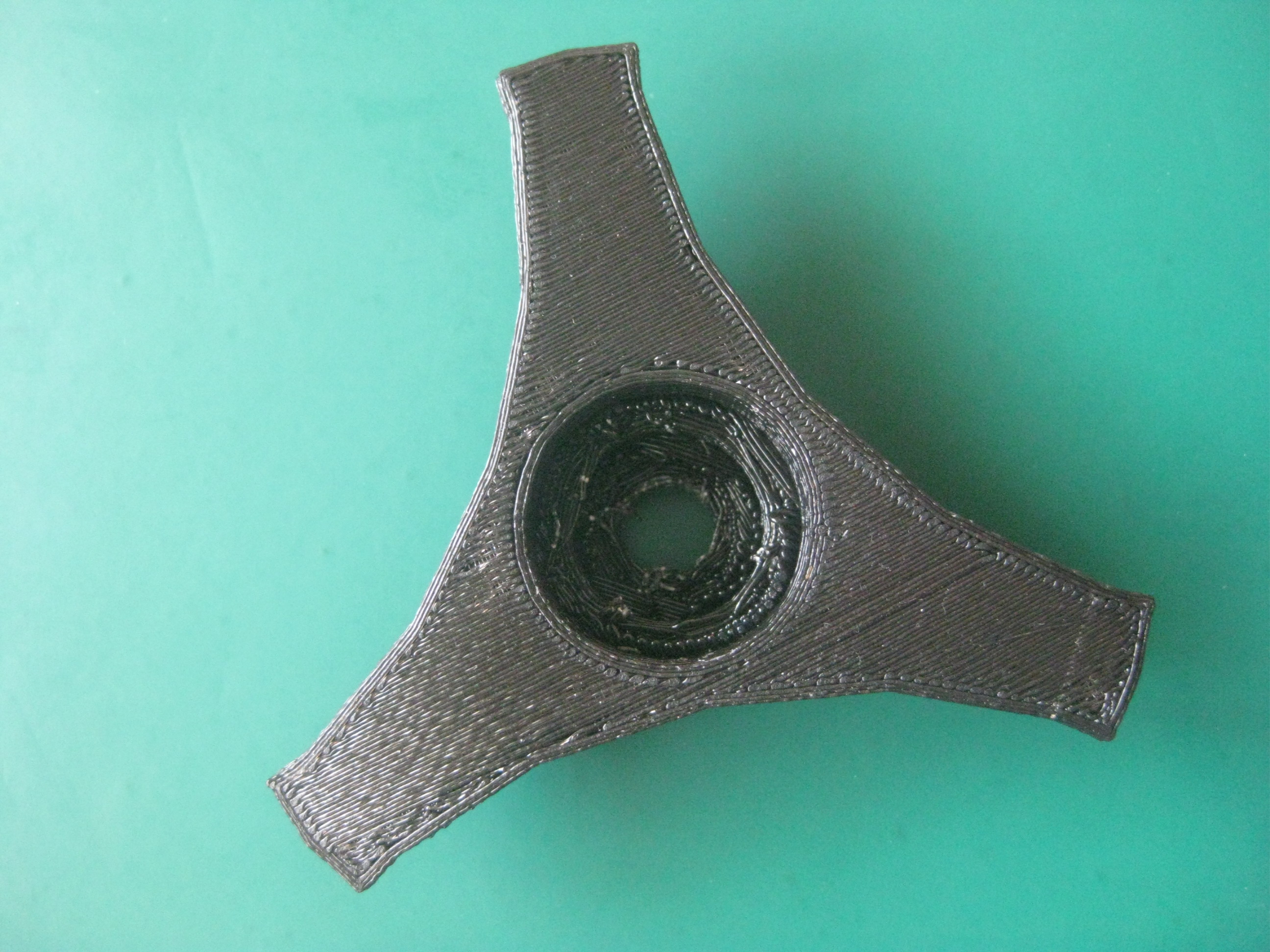

Printed part

You will need two (2) of them. At least one (1) should have a ball bearing.









Download Universal Filament Spool Holder (K8200, 3drag, etc.)

You can download this design at Thingiverse.com

https://www.thingiverse.com/thing:173204



Installation
